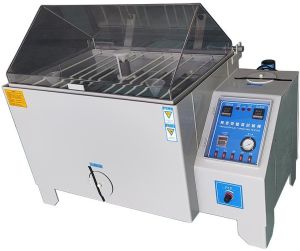

Salt Spray Test Apparatus

Caltech Instruments Pvt Ltd offers CES 201 Salt Spray Test Apparatus. Salt spray test apparatus for rebars / painted / coated panels, automobile components which are exposed to a mist of salt over a period of test duration. Saturated air produced by spraying common salt solution into an enclosed cabinet. The articles being positioned for this accelerated corrosion test in such a way that they are exposed to the hot mist produced in the chamber, through the controlled air and liquid nozzles. The instrument is suitable for testing as per IS 101 / ASTM B117 and other standards.

• CES-201/1

Chamber Size (L X W X H) mm 450 X 300 X 300

Working Size (L X W X H) mm 280 X 300 x 300

Capacity (litres) 34

Numbers of Panel  8

• CES-201/2

Chamber Size (L X W X H) mm 680 X 420 X 410

Working Size (L X W X H) mm 410 X 410 X 410

Capacity (litres)70

Numbers of Panel 16

• CES-201/3

Chamber Size (L X W X H) mm 900 X 520 X 370

Working Size (L X W X H) mm 550 X 520 X 370

Capacity (litres) 105

Numbers of Panel 24

• CES-201/4

Chamber Size (L X W X H) mm 900 X 600 X 600

Working Size (L X W X H) mm 560 X 600 X 600

Capacity (litres) 200

Numbers of Panel 48
