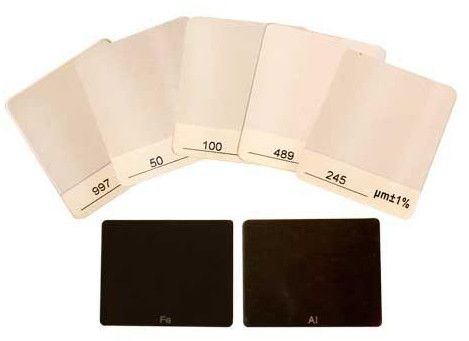

Calibration Foil Standards

Caltech Instruments Pvt Ltd offers CES-08-CES09 Calibration Foils. Calibration Foils are used for calibrating the Coating Thickness Gauge (DFT Meter). Calibration Foils are ideal for use in the laboratory, on the production line or on site. Calibration foils or ‘shims’ are the most convenient way of creating a coating thickness standard on the substrate material, surface finish or form. This is the ideal method for adjusting the calibration of the coating thickness gauge to ensure the greatest possible accuracy. Calibration Foils are necessary for the day-to-day calibration checking of coating thickness meters. Each individual foil is measured in the centre and the value is written on the label and is supplied in a strong robust wallet which allows protection of each foil from dirt, grease etc. The foils are supplied as a set and can be either the standard set: CES-08 : 10, 25, 50, 125, 250, 490, 790 50, 100, 250, 500, 1000 µm or CES-09 : 50, 100, 250, 500, 1000 µm or alternatively a special set can be supplied made up of any 8 values as listed below which will cater for more specialized measurement ranges. 12µm / 25µm / 37µm / 50µm / 63µm / 75µm / 100µm / 125µm / 150µm / 175µm / 190µm / 200µm / 225µm / 250µm / 275µm / 300µm / 350µm / 375µm / 500µm / 625µm / 750µm / 1000µm / 1250µm / 1500µm / 2000µm / 3000µm / 5mm / 9.5mm / 15mm.
